QFN 56 64 SMD TURN TO DIP PCB Adapterberak

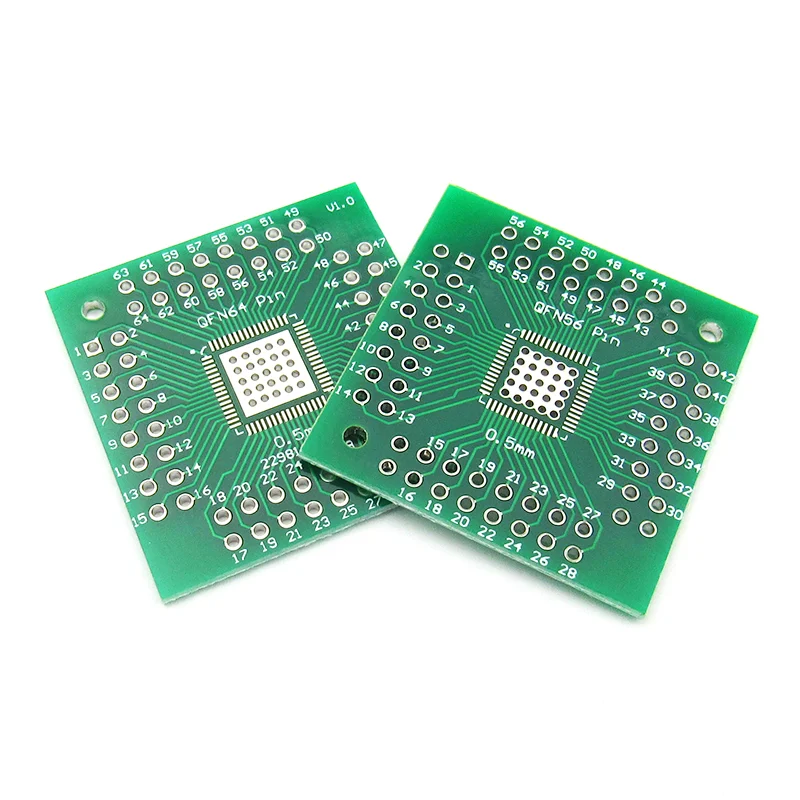

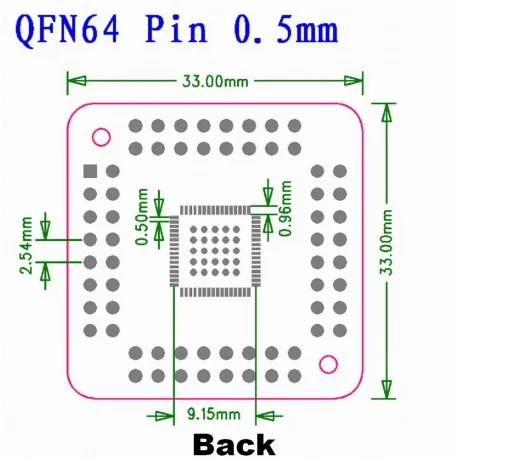

The QFN 56/64 SMD to DIP PCB Adapter is an essential tool for engineers and hobbyists alike, designed specifically for the seamless integration of surface-mounted device (SMD) components, particularly in configurations using QFN56 or QFN64 packages. This innovative adapter facilitates the conversion from SMD to dual in-line package (DIP) footprints, allowing for greater flexibility and ease in various PCB applications. ### Overview of the QFN Adapter At its core, this adapter features a double-sided design that maximizes efficiency and space utilization. The PCB is crafted with precision to ensure compatibility with both the QFN56 and QFN64 square circuit layouts. One side of the adapter is dedicated to the QFN56 package, while the reverse side accommodates the QFN64, enabling users to effectively manage their designs without needing multiple adapters. The printed circuit board incorporates a non-stick mask, which is crucial for providing a clean and professional finish. This non-stick characteristic ensures that soldering can be performed smoothly, preventing excess solder from adhering to unintended areas, which in turn maintains the integrity of the connections and overall functionality of the circuit. ### Key Features 1. **Versatility**: The QFN 56/64 SMD to DIP PCB Adapter is a versatile tool, making it ideal for various projects that require these specific package types. This one-stop solution simplifies the transition between component types, reducing the need for multiple adapters. 2. **Double-Sided Design**: The innovative double-sided layout allows for efficient routing and space management, making it easier to work with different component orientations and configurations. 3. **Non-Stick Mask**: The non-stick mask feature is particularly advantageous during soldering processes, ensuring that the components can be easily manipulated and soldered without obstruction. 4. **Robust Construction**: Designed to withstand the demands of regular use, this adapter is built from high-quality materials that ensure durability and reliable performance over time. ### Applications The QFN 56/64 SMD to DIP PCB Adapter is ideal for a variety of applications, including but not limited to: - **Prototyping**: Engineers can quickly implement designs and test theories without the hassle of designing custom footprints for each component. - **Hobbyist Projects**: Electronics enthusiasts can easily incorporate QFN components into their projects, promoting creativity and innovation. - **Product Development**: Businesses can utilize the adapter to streamline their product development processes, ensuring that prototypes align with production specifications. ### Conclusion In conclusion, the QFN 56/64 SMD to DIP PCB Adapter represents a significant advancement for anyone working with surface-mount devices. Its thoughtful design, featuring dual functionality and an efficient non-stick mask, allows for effortless transitions between different circuit configurations. By incorporating this adapter, users can enhance their workflow, ultimately leading to more efficient designs and successful project outcomes.
